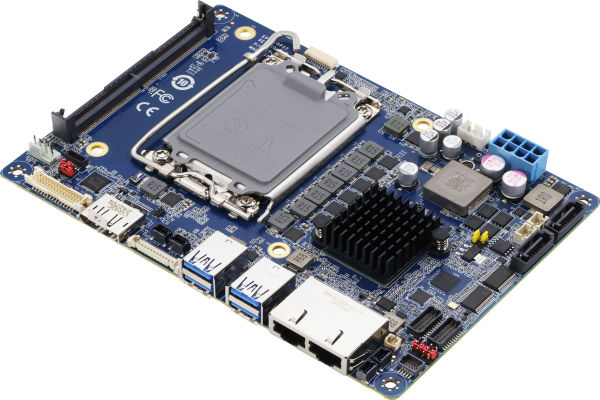

AAEON, a leading provider of embedded computing solutions, has introduced the EPIC-RPS7, a 4” industrial single-board computer designed to support 12th, 13th, and 14th Gen Intel Core processors (up to 65W), along with up to 64GB of DDR5 memory via two SODIMM slots.
Engineered as a cost-effective solution, the EPIC-RPS7 is ideal for high-performance computing in compact industrial environments. It’s particularly well-suited for smart manufacturing applications such as industrial control, PLC automation, and remote monitoring—where larger Mini-ITX boards may not be practical due to space limitations.
Demonstrating a substantial design improvement on its predecessors, the EPIC-RPS7 is equipped with a total of eight USB interfaces, with four physical USB 3.2 Type-A ports paired with four USB 2.0 via pin header. In addition to this, the board hosts four COM connectors (two for RS-232/422/285 and two for RS-232), an 8-bit GPIO, as well as SMBus and I2C. A feature further differentiating the board, particularly for industrial environments, is its support for both 19V to 24V and 12V power inputs via an 8-pin DC input socket.
The EPIC-RPS7 provides a number of options for both wired and wireless connectivity, with two LAN ports running at both 2.5GbE and 1GbE speed, one full-size Mini Card/mSATA slot, a Nano SIM slot, and both an M.2 2280 M-Key and M.2 2230 E-Key for NVMe and Wi-Fi module installation, respectively.
For display, the EPIC-RPS7 provides DP 1.2 for 3840 x 2160 @60Hz, VGA at 1920 x 1080, and a dual-channel LVDS connector for three simultaneous display outputs.
