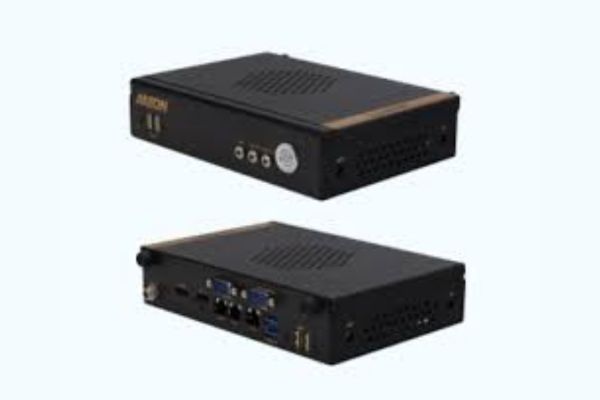

AAEON, a leading provider of embedded solutions, has unveiled the GENESYSM-MTH6, a slim SubCompact System powered by Intel Core Ultra processors Series 1 (formerly Meteor Lake). Measuring just 190mm × 134.1mm × 43mm, and supporting both wall and VESA mounting, the GENESYSM-MTH6 is designed as a compact edge AI system for industrial environments. With three LAN ports capable of supporting multiple cameras, AAEON highlights that it is also well-equipped for AI-assisted surveillance applications.
Differentiating itself from previous AAEON SubCompact Systems is the GENESYSM-MTH6’s inclusion of the PER-SB2B expansion module as part of the product’s BOM. The module, which was offered as an optional accessory for the board-level GENE-MTH6, will be included by default for the GENESYSM-MTH6.
This module provides a substantial boost to the expansion options available, providing the system with two M.2 2280 M-Key slots for high-speed storage or AI acceleration, while maintaining an additional M.2 2280 M-Key on the system’s motherboard. Other expansion options include an M.2 3052 B-Key and M.2 2230 E-Key, which allow for the installation of 5G and Wi-Fi 6E CNVi modules, respectively.
The GENESYSM-MTH6 has a robust I/O that lends itself to industrial use, including three RJ-45 LAN, two of which run at 2.5GbE and one at 1GbE. AAEON notes that Intel vPro and PXE support is available on the system’s two 2.5GbE ports on SKUs featuring select processors from the Intel Core Ultra processors (Series 1) range. Rounding off its I/O, the GENESYSM-MTH6 offers two COM ports for RS-232/422/485, two USB 3.2 Gen 2, a GPIO 8-bit, and a choice of SMBus or I2C.
Environmental resilience reinforces the GENESYSM-MTH6’s credibility for industrial deployment, with a 9V to 36V power input range with ERP support alongside a -10°C to 50°C operating temperature range.
