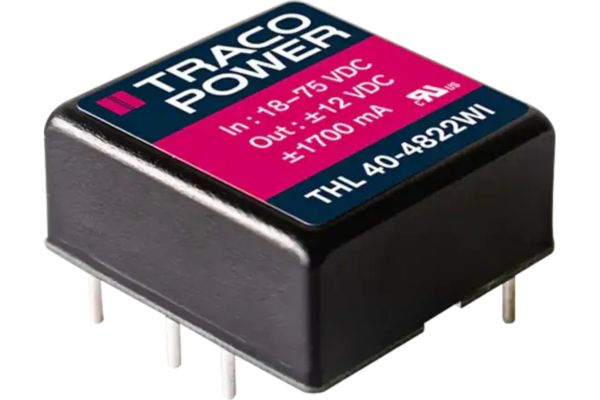

Traco Power has launched the THL 40WI series, a new range of 40-watt isolated DC/DC converters that combine high quality with cost efficiency in a compact 1” × 1” metal enclosure. Designed specifically for challenging industrial and communication applications, this series expands Traco Power’s product lineup by offering a solution that meets both performance and budget requirements.
Housed in a sturdy 1” × 1” × 0.43” case, these converters support wide input voltage ranges of 9–36 VDC and 18–75 VDC, making them adaptable to various power system designs. They achieve efficiencies up to 93% and can reliably operate within temperatures from –40°C to +65°C without any reduction in performance. For enhanced heat management, an optional heatsink is also available.
The THL 40WI converters come equipped with robust protection features, including safeguards against overloads, overvoltage, and short circuits. Additional functionalities such as remote On/Off control and output voltage trimming offer greater design flexibility. Their 1500 VDC input-to-output isolation ensures safe, stable operation.
Meeting UL 62368-1 safety standards, these converters are ideal for mobile devices, instrumentation, distributed power setups, and industrial electronics. Supported by a three-year warranty, the THL 40WI series highlights Traco Power’s dedication to delivering reliable, affordable power solutions worldwide.
Key features of the THL 40WI series:
- 40 Watt converter in a 1”×1” metal package
- Cost-efficient design
- Wide 4:1 input voltage range: 9–36 and 18–75 VDC
- Operating temperature range –40 to +65 °C without derating
- 1500 VDC I/O-isolation
- Protection against overload, overvoltage, and short circuit
- Remote On/Off and Trim function
- Optional heatsink for increased temperature capabilities
- 3-year product warranty
