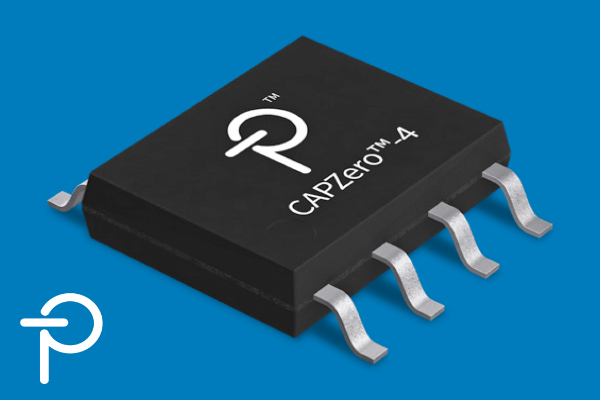

Power Integrations, a leading provider of high-voltage integrated circuits for energy-efficient power conversion, has expanded its CAPZero X-capacitor discharge IC portfolio with the launch of the fourth-generation CAPZero-4. Designed for industrial and consumer applications, the new device builds on the company’s pioneering X-capacitor discharge technology. This technology helps improve power efficiency by keeping the discharge resistor disconnected during normal AC-DC power supply operation and activating it when the power supply is unplugged, allowing the X-capacitor to discharge safely.
The latest iteration, the CAPZero-4 family, reduces system no-load and standby input power by up to 1000 mW – critical when total system standby power requirements can be as low as 300 mW. This is achieved by a device which consumes less than 1 mW to support zero-watt no-load operation. It also features a wide operating temperature of -40 deg. C to 125 deg. C to support demanding outdoor industrial applications.
“CAPZero-4 makes it easy for our customers in industrial and consumer markets to meet increasingly stringent standby and no-load requirements,” said Edward Ong, senior product marketing manager at Power Integrations. “The fourth generation of our CAPZero technology delivers more of the available power to the load during standby. With its pin-to-pin and package compatibility with previous CAPZero devices, customers can adopt it without redesigning, making it an ideal solution across a wide range of markets.”
CAPZero-4 ICs meet the needs of the appliance, display, adapter, and industrial markets supporting AC-DC converters with line-to-neutral input capacitance between 100 nF and 6 μF. It is ideal for appliances requiring ErP Lot 6 compliance and adapters requiring ultralow no-load consumption (less than 300 mW). By eliminating the losses typically caused by the X-capacitor bleed resistors, the technology increases the available standby power for embedded power supplies that must meet strict standby power limits. Since introducing the technology in 2010, Power Integrations has shipped more than one billion CAPZero ICs.
Key features include:
- Ultra-Low Power Consumption below 0.75 mW at 230 VAC, enabling solutions with zero no-load power.
- Extended Operating Temperature from -40 deg. C to 125 deg. C to support industrial, outdoor, and other harsh-environment applications.
- Drop-In Replacement through package and pin-compatibility with CAPZero-3, enabling easy migration to the new family. Designing with the CAPZero-4 is simply a matter of selecting the appropriate external resistor values to meet the necessary X-capacitor discharge time.
- Global Safety Compliance – designs using CAPZero-4 meet IEC 60335, EN/IEC 62368-1 (NEMKO), UL 62368-1, and GB 4943.1 (CQC) standards.
Availability
The CAPZero-4 is in production and shipping to customers.
